TROUBLESHOOTING

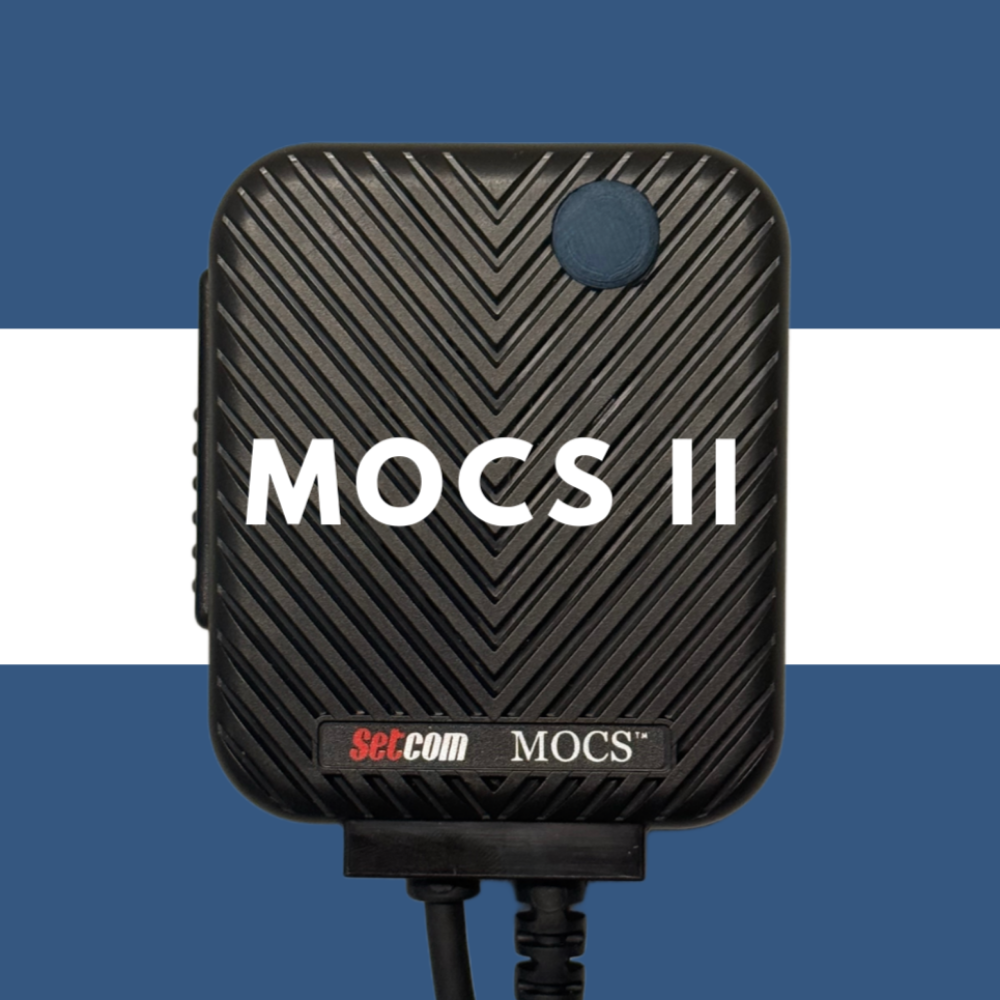

MOCS II Bluetooth Portable Only Wireless
TS-127 Power:
Verifying Power
To verify the unit is getting power – if the LED lights up and flashes when power is turned on, it is getting power. Check interface cable if LED does not light up
TS-128 PTT, Tx, Rx:
Issues with PTT, Rx and/or Tx
Radio connectors on the SpeakerMic can get wet, corroded or have bent pins, this can cause constant or intermittent keying (PTT), Transmit or Receive issues. Check the connector to verify it is in good condition, dry, clean (no corrosion) and no bent pins.
TS-129 Pairing/Linking:
Paring or Linking Issues
If the SpeakerMic and MBT fail to Pair or Link, the simplest solution is to turn off power and repeat the Pairing or Linking process, if this does not help, try clearing pairing (see below for instructions) on both units and then pair them again. If the SpeakerMic is placed into Pairing Mode while already Linked to a MBT the SpeakerMic will communicate to the MBT to forget it’s Pairing – You will see a series of LED flashing on both the SpeakerMic and MBT while they are communicating and then the MBT will go into Sleep Mode, this process takes about 30 seconds.
If this was done in error, simply put the MBT into Pairing Mode (Triple Tap) after it is in Sleep Mode and the units will pair back up. If for whatever reason the power is turned off on both units, simply go through the pairing process again on both units. Keep in mind that if you put one unit into pairing mode, you will need to put the other unit into pairing mode also.
Therefore, you should only place a unit into pairing mode if you’re certain that the SpeakerMic and MBT are not already paired/linked, or you are pairing to a different unit. If either unit shows steady RED on the Status LED, there has been some kind of error. In this case it is best to clear pairing on both units and try the pairing process again.
TS-130 to Clear Pairing of A Speaker Mic or Mbt:
Clear Paring
When a SpeakerMic or MBT enters Pairing Mode (fast GREEN flash) it will erase previous paired data. If the SpeakerMic or MBT is power off while still in Pairing Mode, it will enter into Sleep Mode – Pairing is Cleared. This may not be feasible with the MBT-B “BMW Versions”, because power to Header #6 – Helmet Headset Interface of the BMW Radio Box Connections remains on for 30 minutes after the motorcycle ignition or accessory power is turned off.
